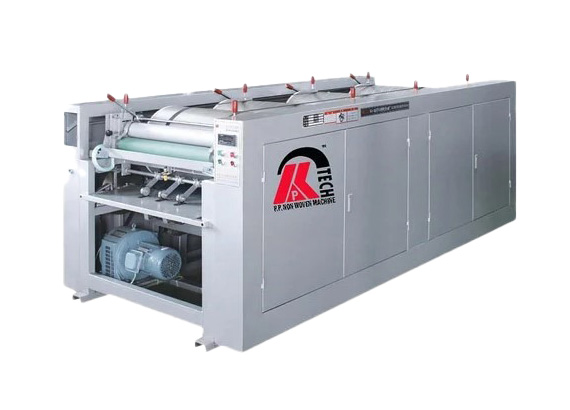

4 Colour Drum Printing Machine
| Model Name/Number |
amf600 |
| Usage/Application |
non woven fabrics |
| Color Output |
4 Colour |
| Material |
non woven fabrics |
| Number of Colors |
4 |
| Max Printing Length |
500 - 1000 (mm) |
| Machine Type |
Semi - Automatic |
| Printing |
Color Printing |
| Minimum Prder Quantity |
1 |

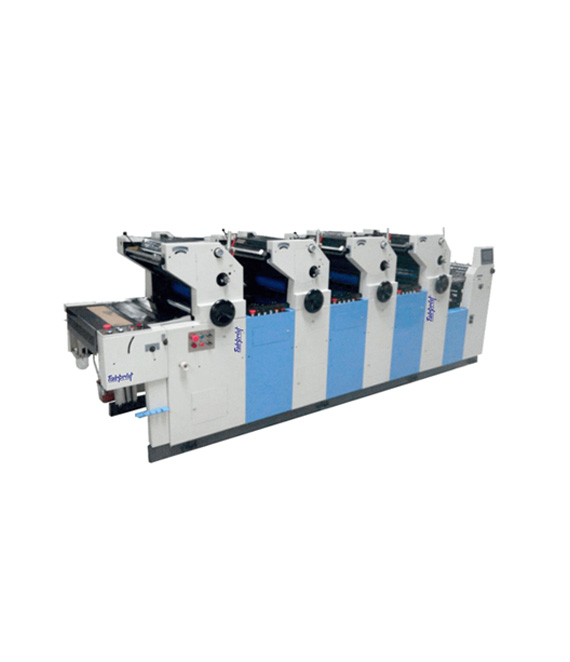

4 Colour Offset Printing
| Model |
E1824Z |
| Size |
18″ x 24.5″ |
| Sheet Size (Max.) |
457 x 620 mm |
| Sheet Size (Min.) |
210 x 297 mm |
| Printing Area (Max.) |
420 x 605 mm |
| Plate Size |
480 x 620 mm |
| Blanket Size |
515 x 620 x 1.9 mm |
| Stock Handled (Max.) |
300 gsm |
| Stock Handled (Min.) |
40 gsm |
| No. of Ink Rollers |
14 / Unit |
| No. of Ink Form rollers |
3 / Unit |
| No. of Dampening Rollers |
5 / Unit |
| Speed (Max.) |
2000 I.P.H. |
| (7000 I.P.H. – Paper) |
| Pile Height Feeder |
375 mm |
| Power Required |
8 HP |
| Power Supply |
220v / 1 Ph. / 50 Hz. |
| Floor Space |
1100 x 3900 mm |
| Height (Approx.) |
1400 mm |
| Weight (Approx) |
2600 kg |

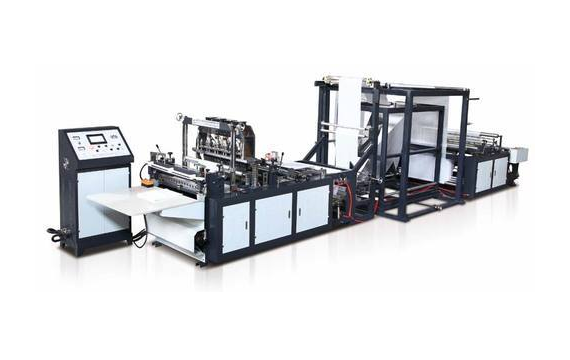

Fully automatic non woven box type bag making machine
| Model |
HEL-DC700 |
| Production Speed |
20-100pcs/min |
| Bag Width |
100-800mm |
| Bag Length |
200-580mm |
| Non woven fabric specification |
20-100gsm |
| Power supply |
220v/50Hz |
| Total power |
18kw |
| Overal size |
L11500 W2500 N 2100mm |

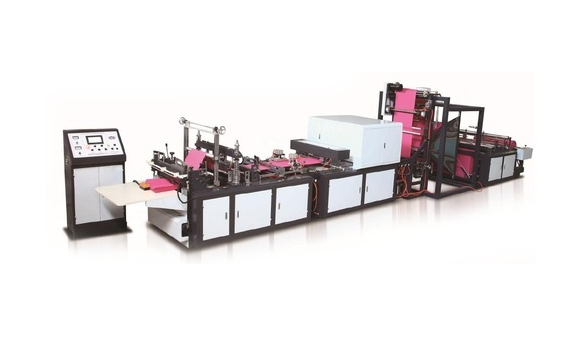

D Cut & W Cut non woven bag making machine
| Model |
HEL-DC700 |
| Production Speed |
20-100pcs/min |
| Bag Width |
100-800mm |
| Bag Length |
200-580mm |
| Non woven fabric specification |
20-100gsm |
| Power supply |
220v/50Hz |
| Total power |
18kw |
| Overal size |
L11500 W2500 N 2100mm |

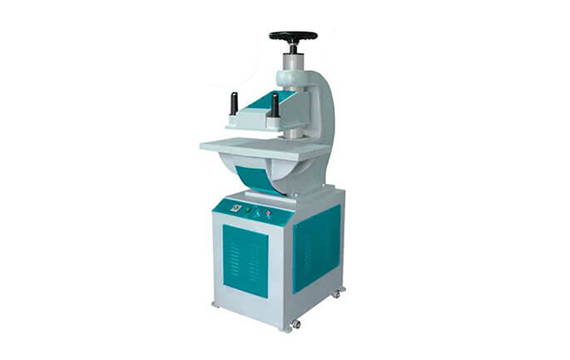

Hydraulic pressure W Cut punching machine
| Model |
X525 |
| Motor Power |
11kw |
| Working Pressure |
101 |
| Clamp Travel |
5 - 75mm |
| Distance between workable clamp |
65 - 150mm |
| Weight |
800kg |
| Outline Diameter(LWH) |
1000 800 1300mm |
